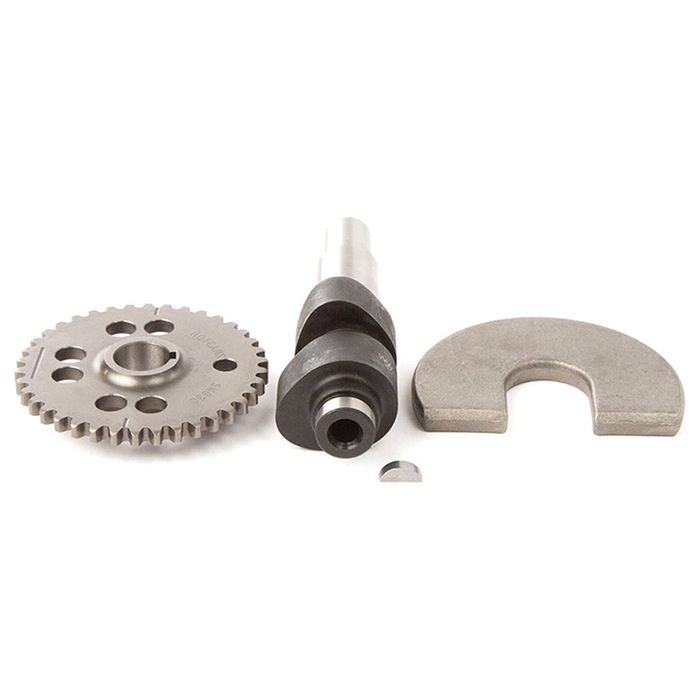

Hot Cams Camshaft Stage 1 Honda Trx650Fa 03-05 Trx680Fa 06-07
Stock Code:
HC-1030-1
Description:
CAM SHAFT HONDA RINCON 650 2003-2005 HONDA Rincon 650 2003-2005
Stock Level
Last One Left
$374.95
Stage 1 Cam
- Increased low-end and mid-range power with no loss on top-end
- Improved throttle response
- Uses stock valve springs, rockers, and followers
- Single-cam engine
- Uses stock auto-decompression mechanism
Please Note: Images may be for illustration purposes only and reflect the class of product and not the specific model.
Technical Specifications
| Exhaust Duration (Degrees at 1mm): | 241 |
| Exhaust Lift (mm): | 8 |
| Exhaust Lobe Center (Degrees): | 99.5 |
| Exhaust Valve Lash (mm): | 0.33 |
| Intake Duration (Degrees at 1mm): | 243 |
| Intake Lift (mm): | 8.5 |
| Intake Lobe Center (Degrees): | 103 |
| Intake Valve Lash (mm): | 0.15 |
