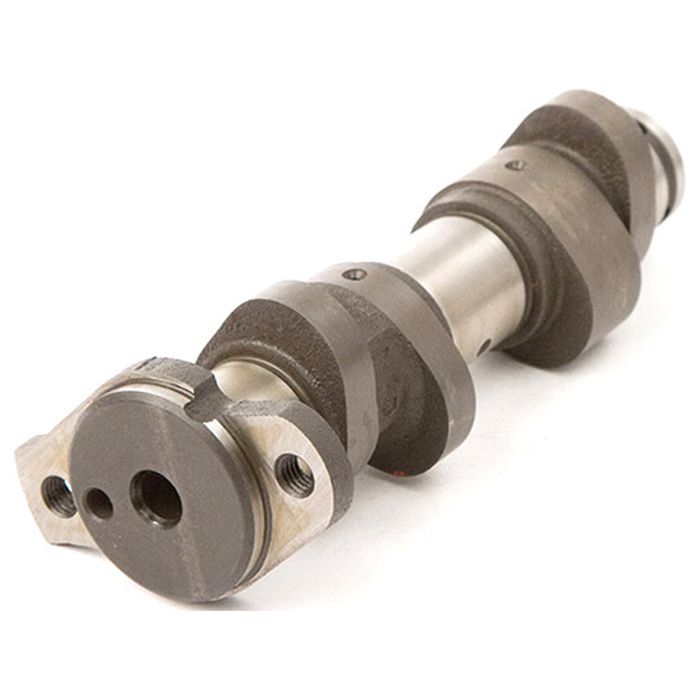

Hot Cams Camshaft Stage 1 Yfm660F Grizzly 4X4 02-08 Yxr660F Rhino 04-07
Stock Code:
HC-4034-1
Description:
CAM SHAFT YAMAHA 660GRIZZLY 2002-2008 YAMAHA 660Grizzly 2002-2008
Stock Level
Out Of Stock
$309.95
Stage 1 Cam
- Mudbuster camshaft
- Improved acceleration, more bottom-end, and no top-end loss
- Must use Raptor 660 center intake valve spring, NOT included
- All other valve springs stock
- Single cam engine
- Uses stock auto-decompression mechanism
Please Note: Images may be for illustration purposes only and reflect the class of product and not the specific model.
Technical Specifications
Exhaust Duration (Degrees at 1mm): | 248 |
Exhaust Lift (mm): | 9.12 |
Exhaust Lobe Center (Degrees): | 104.5 |
Exhaust Valve Lash (mm): | 0.25 |
Intake Duration (Degrees at 1mm): | 247 |
Intake Lift (mm): | 9.02 |
Intake Lobe Center (Degrees): | 104.5 |
Intake Valve Lash (mm): | 0.2 |
