Skf Shock Seal Head Unit 2.0 Kyb Shaft 16Mm Piston 50Mm

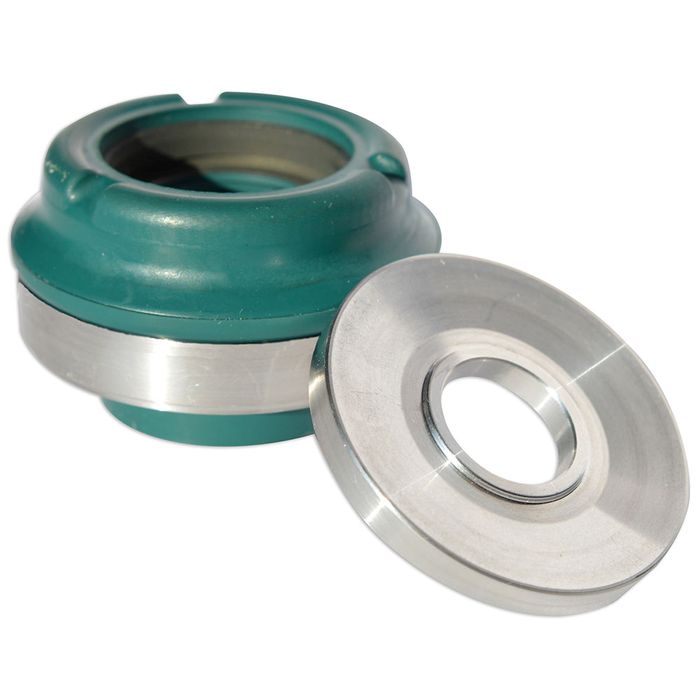

The seal head unit consists of five pre-assembled components: an integrated monotube seal, a washer, a bushing, the seal head and a dirt scraper. The integrated monotube is itself an assembly of five pre-assembled components; an oil seal, a bumper, an O-ring and a back up ring to support the main lip under high pressure.
Together with the unit, SKF offers the service kit to supply all necessary components for a simplified and efficient maintenance of the SKF seal head unit. The service kit includes the integrated monotube seal, the bushing and the dirt scraper.
Because it is a single unit it can be mounted saving time compared to traditional multi-component solutions and the static seals integration into the monotube seal assures no air between those five integrated components, simplifying the process to purge air from the system.
The new seal head unit has been developed and tested, both in SKF laboratory and on the field by leading OE shock absorber manufacturers.
The dirt scraper is a new design for the application that provides low friction and excellent dirt exclusion.
HUSQVARNA TC/TE 250 2012-2013
HUSQVARNA TC/TXC 449 2011-2013
HUSQVARNA TE 310 2012-
HUSQVARNA TXC 511 2011-
KAWASAKI KX 125/250 2000-2008
KAWASAKI KXF 250 2004-2005
KAWASAKI KXF 450 2006-2008
SUZUKI RMZ 250 2004-2006
Yamaha YZ 125/250 1993-2005
Yamaha YZF 250 2001-2005
Yamaha YZF 450 2003-2005
Downloads
- CYCLE - DIRT/ROAD HONDA CRF450R 2009
- CYCLE - DIRT/ROAD HONDA CRF450R 2010
- CYCLE - DIRT/ROAD HONDA CRF450R 2011
- CYCLE - DIRT/ROAD HONDA CRF450R 2012
- CYCLE - DIRT/ROAD HONDA CRF450R 2013
- CYCLE - DIRT/ROAD HONDA CRF450R 2014
- CYCLE - DIRT/ROAD HONDA CRF450R 2015
- CYCLE - DIRT/ROAD HONDA CRF450R 2016
- CYCLE - DIRT/ROAD HONDA CRF450X 2009
- CYCLE - DIRT/ROAD HONDA CRF450X 2010
- CYCLE - DIRT/ROAD HONDA CRF450X 2011
- CYCLE - DIRT/ROAD HONDA CRF450X 2012
- CYCLE - DIRT/ROAD HONDA CRF450X 2013
- CYCLE - DIRT/ROAD HONDA CRF450X 2014
- CYCLE - DIRT/ROAD HONDA CRF450X 2015
- CYCLE - DIRT/ROAD HONDA CRF450X 2016
- CYCLE - DIRT/ROAD KAWASAKI KX450F 2009
- CYCLE - DIRT/ROAD KAWASAKI KX450F 2010
- CYCLE - DIRT/ROAD KAWASAKI KX450F 2011
- CYCLE - DIRT/ROAD KAWASAKI KX450F 2012
- CYCLE - DIRT/ROAD KAWASAKI KX450F 2013
- CYCLE - DIRT/ROAD KAWASAKI KX450F 2014
- CYCLE - DIRT/ROAD SUZUKI RMZ250 2016
- CYCLE - DIRT/ROAD SUZUKI RMZ250 2017
- CYCLE - DIRT/ROAD SUZUKI RMZ450 2016
- CYCLE - DIRT/ROAD SUZUKI RMZ450 2017
- CYCLE - DIRT/ROAD SUZUKI RMZ450 2018
- CYCLE - DIRT/ROAD SUZUKI RMZ450 2019
- CYCLE - DIRT/ROAD SUZUKI RMZ450 2020
- CYCLE - DIRT/ROAD SUZUKI RMZ450 2021
- CYCLE - DIRT/ROAD SUZUKI RMZ450 2022
- CYCLE - DIRT/ROAD SUZUKI RMZ450 2023
- CYCLE - DIRT/ROAD YAMAHA WR250F 2015
- CYCLE - DIRT/ROAD YAMAHA WR250F 2016
- CYCLE - DIRT/ROAD YAMAHA WR250F 2017
- CYCLE - DIRT/ROAD YAMAHA WR250F 2018
- CYCLE - DIRT/ROAD YAMAHA WR250F 2019
- CYCLE - DIRT/ROAD YAMAHA WR250F 2020
- CYCLE - DIRT/ROAD YAMAHA WR250F 2021
- CYCLE - DIRT/ROAD YAMAHA WR250F 2022
- CYCLE - DIRT/ROAD YAMAHA WR250F 2023
- CYCLE - DIRT/ROAD YAMAHA YZ250F 2014
- CYCLE - DIRT/ROAD YAMAHA YZ250F 2015
- CYCLE - DIRT/ROAD YAMAHA YZ250F 2016
- CYCLE - DIRT/ROAD YAMAHA YZ250F 2017
- CYCLE - DIRT/ROAD YAMAHA YZ250F 2018
- CYCLE - DIRT/ROAD YAMAHA YZ250F 2019
- CYCLE - DIRT/ROAD YAMAHA YZ250F 2020
- CYCLE - DIRT/ROAD YAMAHA YZ250F 2021
- CYCLE - DIRT/ROAD YAMAHA YZ250F 2022
- CYCLE - DIRT/ROAD YAMAHA YZ250F 2023
- CYCLE - DIRT/ROAD YAMAHA YZ250FX 2015
- CYCLE - DIRT/ROAD YAMAHA YZ250FX 2016
- CYCLE - DIRT/ROAD YAMAHA YZ250FX 2017
- CYCLE - DIRT/ROAD YAMAHA YZ250FX 2018
- CYCLE - DIRT/ROAD YAMAHA YZ250FX 2019
- CYCLE - DIRT/ROAD YAMAHA YZ250FX 2020
- CYCLE - DIRT/ROAD YAMAHA YZ250FX 2021
- CYCLE - DIRT/ROAD YAMAHA YZ250FX 2022
- CYCLE - DIRT/ROAD YAMAHA YZ250FX 2023
- CYCLE - DIRT/ROAD YAMAHA YZ450F 2010
- CYCLE - DIRT/ROAD YAMAHA YZ450F 2011
- CYCLE - DIRT/ROAD YAMAHA YZ450F 2012
- CYCLE - DIRT/ROAD YAMAHA YZ450F 2013
- CYCLE - DIRT/ROAD YAMAHA YZ450F 2014
- CYCLE - DIRT/ROAD YAMAHA YZ450F 2015
- CYCLE - DIRT/ROAD YAMAHA YZ450F 2016
- CYCLE - DIRT/ROAD YAMAHA YZ450F 2017
- CYCLE - DIRT/ROAD YAMAHA YZ450F 2018
- CYCLE - DIRT/ROAD YAMAHA YZ450F 2019
- CYCLE - DIRT/ROAD YAMAHA YZ450F 2020
- CYCLE - DIRT/ROAD YAMAHA YZ450F 2021
- CYCLE - DIRT/ROAD YAMAHA YZ450F 2022
- CYCLE - DIRT/ROAD YAMAHA YZ450F 2023
- CYCLE - DIRT/ROAD YAMAHA YZ450FX 2016
- CYCLE - DIRT/ROAD YAMAHA YZ450FX 2017
- CYCLE - DIRT/ROAD YAMAHA YZ450FX 2018
- CYCLE - DIRT/ROAD YAMAHA YZ450FX 2019
- CYCLE - DIRT/ROAD YAMAHA YZ450FX 2020
- CYCLE - DIRT/ROAD YAMAHA YZ450FX 2021
- CYCLE - DIRT/ROAD YAMAHA YZ450FX 2022
- CYCLE - DIRT/ROAD YAMAHA YZ450FX 2023
- CYCLE - DIRT/ROAD YAMAHA YZ450SM 2010
- CYCLE - DIRT/ROAD YAMAHA YZ450SM 2011
- CYCLE - DIRT/ROAD YAMAHA YZ450SM 2012
- CYCLE - DIRT/ROAD YAMAHA YZ450SM 2013
- CYCLE - DIRT/ROAD YAMAHA YZ450SM 2014
- CYCLE - DIRT/ROAD YAMAHA YZ450SM 2015
- CYCLE - DIRT/ROAD YAMAHA YZ450SM 2016
