S&S Cyl Kit 4" Bore/4-3/8 Str 110 07-17 Tour
T
Inspired by our Pro Stock Drag Race engines, these updated big bore kit utilizes a Ductile Cast Iron liner wrapped in cast aluminum for optimum thermal conductivity and performance. Bolt-in kits do not require machining, rebalancing or engine removal, and include just about everything you’ll need to complete the installation. The biggest cylinder bore that can be installed in a stock crankcase without machining!
Features & Benefits
- Low friction Ductile Cast Iron liner
- 10.5:1 Compression
- Bolts in. No machining, balancing, or splitting the crankcases
- 96" and 103" engines are boosted to 110"

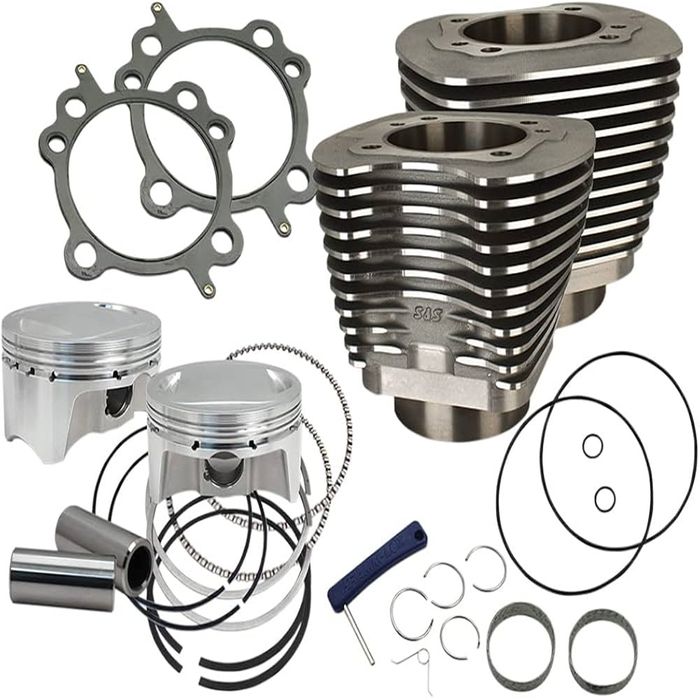

- Complete kits include cylinders, pistons, gaskets, and instructions
- Although not mandatory, we recommend adding an oil cooler to bikes ridden in warmer climates
| Stroke | Bore | Cylinder Length | Piston Type | Dome Volume | 83cc CNC Heads | 85cc Stock Heads | 89cc S&S Heads |
| 4.375 | 4.00" | 4.937" | Forged | .75 pop up | 10.7:1 | 10.5:1 | 10.2:1 |
*Not compatible with S&S 79cc Super Stock® heads and 2014-'16 Twin-Cooled™ touring models. S&S does not recommend compression ratios higher than 10:1 for Tri Glide® or other three wheel models (including conversions) due to extra loads caused by the lugging nature of these bikes. Detonation and subsequent engine damage may result.
** Not recommended for Tri-Glide or other three wheel models due to lugging nature of these bikes**
Please Note: Product image may only represent the class of product and not the specific model.
