DYNA SHIFT MINDER MODULE - 4 CYLINDER

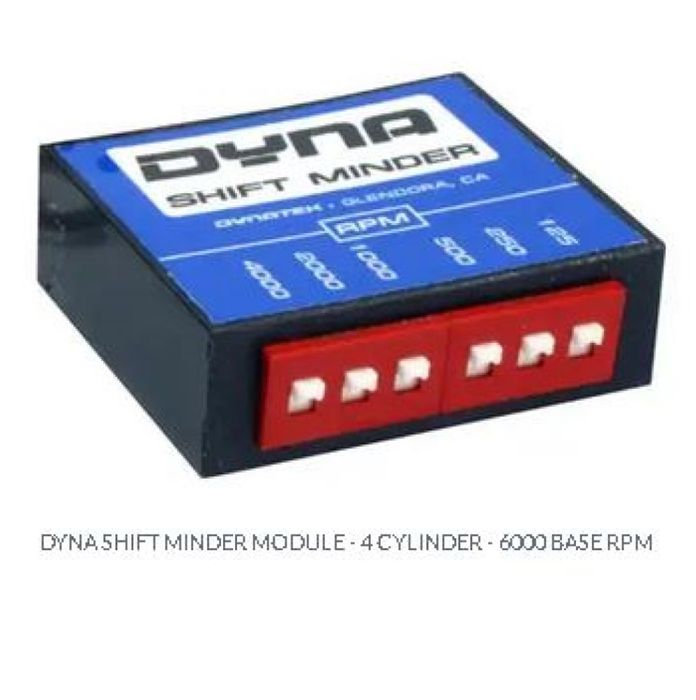

DYNA SHIFT MINDER MODULE - 4 CYLINDER - 6000 BASE RPM

sKU: DSM-4

• Monitors the engine’s RPM to trigger the shift light at exactly the right time
• Adjustable to switch at any of 64 different RPM settings with a 125 RPM increment between settings
• Shift Minder Module only — does not include the Dyna Shift Light
• Can be used to activate other devices besides the Shift Light

The Shift Minder Control Module is adjustable to switch at any of 64 different RPM settings with a 125 RPM increment between settings. The Shift Minder Control Module is self contained and requires no additional parts for RPM switch point selection.

The high-RPM versions of our Shift Minders are designed to work with the higher revving engines in the latest sportbikes. The DSM-2H is designed to work with the tach signal on most new 2 and 4 cylinder sportbikes, or with the coil signal on high revving 2 cylinders. The DSM-4H is designed to work on the same applications that the DSM-4 works on, but works in a higher RPM range.

The Shift Minder also has a built in bulb test feature, when power is first applied to the Shift Minder, an attached Shift Light will turn on momentarily indicating bulb connection.

The Shift Minder Control Module can be used to activate other devices besides the Shift Light. For instance the Shift Minder output can be hooked to an air shifter solenoid for automatic shifting at a preset RPM. The Control Module could also be used as an RPM activated switch to turn on a nitrous injection system, activate a high speed fuel system circuit or any other RPM controlled function.
